Description:

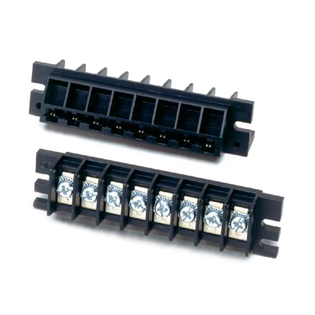

Eaton’s 1384X edge connectors are one-sided vertical mount edge connectors rated at 10A and 250V. These edge connectors can accommodate 4 to 16 poles with 0.375” or 3/8” (9.52 mm) center spacing.

Ratings: 10 A, 250 V
Center Spacing: 0.375” or 3/8” (9.52 mm)
Wire Range: #14-22 AWG Cu; entry to PC board at 90° angle
Number of Poles: 4 to 16 poles
PC Board: Edge contact accepts standard 1/16” (0.0625") PCB
Contacts: Cantilever design 0.02” thick phosphorus bronze with mating surface tin-plated (0.0002) over copper (0.00005)
Terminals: Pressure plate terminals
Material: Black, UL Rated 94V0 Thermoplastic (+125 °C)
Operating Temperature: -55 °C to +105 °C (+212 °F)
